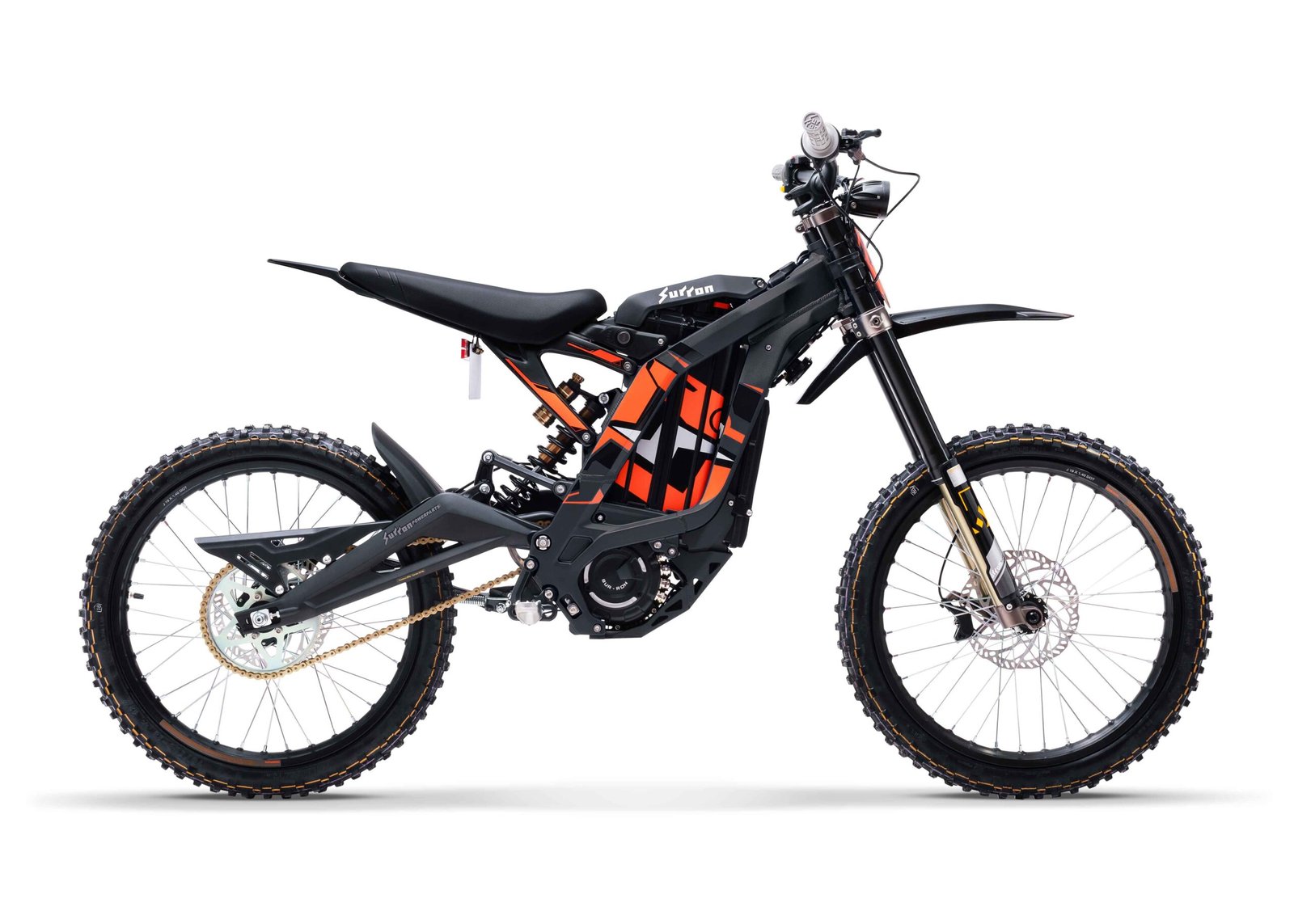

The Electric Dirt Bike That Started It All
First introduced in 2018, the Sur-Ron Light Bee X created an entirely new category of lightweight electric off-road motorcycles . For 2023, Sur-Ron has refined the LBX with significant upgrades to the battery, suspension, and braking systems. Unlike traditional petrol dirt bikes, the LBX offers instant torque, near-silent operation, and minimal maintenance requirements.
2023 Model Year Upgrades
The 2023 Sur-Ron LBX received meaningful improvements over previous generations. These upgrades, introduced mid-2022, include a more powerful battery, improved suspension components, and stronger handlebar mounts . Here are the key changes that distinguish the 2023 model:
| Component | Previous Model | 2023 LBX |
|---|---|---|
| Battery capacity | 34-38Ah | 40Ah (21700 cells) |
| Range (@40km/h) | 55km | 75km |
| Battery cells | 18650 | 21700 (premium) |
| Brakes | 2-piston | 4-piston hydraulic |
| Handlebar mount | Standard | Reworked/Stronger |
| Throttle | Single hall | Dual hall sensor |
The 40Ah battery uses premium 21700 lithium cells instead of the older 18650 cells . This change increases energy density and provides a 20% range improvement. Cruising at 40km/h, you can now travel up to 75km on a single charge .
Powerful 6kW Mid-Drive Motor
At the heart of the 2023 LBX sits a 3kW continuous / 6kW peak BLDC mid-motor with a maximum rotating speed of 5,400 rpm . The motor produces an astonishing 250 Nm of torque at the rear wheel . This torque figure rivals many 250cc petrol dirt bikes despite the LBX weighing only 45kg.
In Sport mode, the bike delivers full power for aggressive trail riding and hill climbing. In Eco mode, the motor output is reduced to conserve battery during longer exploration rides . The ride-by-wire throttle features dual hall sensors for improved reliability and precise control .
60V 40Ah Premium Battery
The 2023 LBX’s battery represents the most significant upgrade for this model year. Rated at 60V with 2,400Wh capacity, the 40Ah pack uses premium cylindrical 21700 cells . These cells offer higher energy density than the previous 18650 cells, allowing more range without increasing weight.
Battery specifications:
- Nominal Voltage: 60V
- Capacity: 40Ah / 2,400Wh
- Cell Type: Premium 21700 lithium cells
- Battery Weight: Approximately 15kg (33 lbs)
- Removable: Yes, can be charged on or off the bike
The included 10A fast charger fully replenishes the battery in approximately 3-4 hours . For comparison, the street-legal L1E version uses a 34Ah (2,040Wh) battery with Panasonic 18650 cells .
Impressive Range and Speed
According to official specifications, the 2023 LBX achieves up to 75km (47 miles) of range when cruising at a steady 40km/h . The claimed maximum range under optimal conditions is up to 100km (62 miles) . However, real-world range varies significantly based on terrain, rider weight, riding mode, and throttle usage.
Top speed considerations:
- Unrestricted models: Approximately 75km/h (47mph)
- Australian-spec models: Capped at 25km/h (street-legal compliance)
- 72V upgraded bikes: Can exceed 80km/h with custom controllers
Race-Ready Suspension
The 2023 LBX features a proper off-road suspension package that justifies its dirt bike classification. The front suspension uses an upside-down hydraulic fork with 200mm (7.9 inches) of travel . Brands vary by production batch – both KKE and Fastace units are used .
Rear suspension specifications:
- Type: Intersect TR linkage system
- Travel: 87mm (3.4 inches)
- Adjustability: Preload and damping adjustable
These suspension components were developed after thousands of test hours on cross-country tracks . The settings can be tuned according to your riding preferences and weight.
Powerful 4-Piston Hydraulic Brakes
A major upgrade for 2023 is the inclusion of 4-piston calipers on both the front and rear wheels . The 203mm discs provide substantial stopping power for a 45kg bike. Additionally, the system features electric regenerative braking that recaptures energy when decelerating .
Brake specifications:
- Front: 4-piston hydraulic disc, 203mm rotor
- Rear: 4-piston hydraulic disc, 203mm rotor
- Regenerative braking: Yes, contributes to battery charging
These brakes offer consistent performance in wet and muddy conditions. The large rotor size provides excellent heat dissipation during extended downhill sections.
Lightweight 6061 Aluminum Frame
The 2023 LBX uses a forged 6061 aluminum alloy frame (T4 & T6 tempered) . This construction combines low weight with high structural rigidity. The total curb weight is only 45kg (99 lbs) for the off-road version .
Key weight comparisons:
- Sur-Ron LBX: 45kg (99 lbs)
- Talaria Sting: 66kg (146 lbs)
- Sur-Ron Ultra Bee: 85kg (187 lbs)
- Typical 125cc dirt bike: 85-95kg (187-209 lbs)
This incredibly low weight makes the LBX exceptionally maneuverable. You can easily lift it over obstacles, load it into a vehicle, and throw it into corners.
Dimensions and Ergonomics
The 2023 LBX dimensions make it accessible to a wide range of rider sizes:
| Dimension | Measurement |
|---|---|
| Overall length | 1,860mm (73.2 inches) |
| Overall width | 780mm (30.7 inches) |
| Seat height | 830mm (32.7 inches) |
| Ground clearance | 270mm (10.6 inches) |
| Wheelbase | 1,255-1,260mm (49.4 inches) |
The 830mm seat height suits riders from approximately 5’4″ to 6’2″. The 780mm handlebar provides excellent leverage for maneuvering through tight trails.
FOC Sine Wave X Controller
The 2023 LBX uses a Field Oriented Control (FOC) sine wave controller . This controller type delivers smoother power delivery and quieter operation than square wave controllers. It also improves efficiency, contributing to the extended range.
Key controller features:
- Type: FOC Sine Wave X Controller
- Programming: Pre-tuned for balanced power and efficiency
- Compatibility: Works with stock 60V battery
- Upgrade path: Aftermarket controllers (BAC 4000, etc.) available for 72V conversions
Ride Modes and Technology
The 2023 LBX offers two distinct ride modes to suit different conditions :
| Mode | Power Output | Best For |
|---|---|---|
| Eco (Mode 1) | Reduced | Extended range, technical trails, beginners |
| Sport (Mode 2) | Full 6kW | Maximum power, hill climbing, aggressive riding |
Additional technology features:
- Regenerative braking: Recharges battery during deceleration
- IP55 water rating: Resistant to rain and splashing
- Battery management system: Smart BMS protects against over-discharge
- USB port: Located on the handlebar for device charging
- LCD display: Shows speed, ODO, trip, battery level
Water Resistance and Durability
The 2023 LBX carries an IP55 water resistance rating . This rating means the bike can withstand low-pressure water jets and dust ingress. You can ride in rain and through puddles without concern. However, the bike is not designed for submersion.
The 6061 aluminum frame resists corrosion better than steel alternatives. The anodized finish protects against scratches and UV damage. With proper maintenance, the LBX can handle years of off-road abuse.
Off-Road Capability
The LBX excels on a wide variety of terrain. It can conquer steep inclines up to 45 degrees . The 250Nm of torque allows you to climb loose, rocky hills that would stall many petrol bikes.
Best terrain for the LBX:
- Singletrack and forest trails
- Motocross tracks
- Sand and gravel pits
- Farm and private property use
- Hill climbs and technical off-road
Important note: The LBX is strictly an off-road vehicle . It does NOT come with street-legal equipment like turn signals, mirrors, or a horn (though the L1E version does). In most jurisdictions, you cannot register the standard LBX for road use.
2023 LBX vs. Ultra Bee Comparison
In 2023, Sur-Ron also launched the larger Ultra Bee . Here is how the two models compare:
| Feature | LBX | Ultra Bee |
|---|---|---|
| Weight | 45kg (99 lbs) | 85kg (187 lbs) |
| Peak power | 6kW | 12.5kW |
| Battery capacity | 2.4kWh | 4kWh |
| Torque | 250Nm | 58Nm (motor) |
| Suspension travel | 200mm front | 240mm front |
| Seat height | 830mm | 910mm |
| Best for | Agility, lightweight | More power, stability |
The LBX remains the choice for riders prioritizing extreme lightweight and maneuverability. The Ultra Bee suits larger riders or those wanting more power and range.
Aftermarket and Modifications
The Sur-Ron aftermarket is one of the most extensive in the electric motorcycle world. Popular upgrades for the 2023 LBX include [citation][2]:
| Upgrade | Cost (approx) | Benefit |
|---|---|---|
| 60V aftermarket battery (Chi, EBMX) | $2,500+ | Extended range |
| 72V controller (BAC 4000) | $800+ | Increased power |
| Marzocchi forks | $1,200+ | Premium suspension |
| EBMX floating rotors | $200+ | Better braking |
| Magura MT5 brakes | $200+ | Improved stopping power |
| Supermoto wheel set | $440+ | Street / dual-sport conversion |
A common upgrade path involves swapping to a 72V system with a higher-output controller. These modifications can push peak power well beyond the stock 6kW, dramatically improving acceleration and top speed.
What’s Included in the Box
When you purchase a new 2023 Sur-Ron LBX, the box includes :
- The Light Bee X e-moto (battery installed)
- 10A fast charger
- Front number plate
- 2 keys and user manual
- Tools for basic adjustment
Important: Front mud guards and side chain guards are not standard inclusions on all models . You may need to purchase these separately depending on your regional configuration.
Warranty and Support
Sur-Ron offers a 2-year warranty on 2023 models sold from December 1st, 2022 onwards . The battery carries a 1-year warranty . This coverage includes manufacturer defects but does not cover wear items like tires, brake pads, or chain.
For warranty service, contact your authorized Sur-Ron dealer. Many owners report good support for genuine defects but note that modifications will void coverage.
Who Is the Sur-Ron LBX 2023 For?
The 2023 Sur-Ron LBX is perfect for:
- Off-road enthusiasts wanting a lightweight electric dirt bike
- Farm and property owners needing quiet, low-maintenance transport
- Motocross riders looking for a practice bike that fits in a van
- Adventure seekers exploring trails without disturbing nature
- Parents seeking a capable youth or teen dirt bike
It may NOT be suitable for:
- Riders needing a street-legal motorcycle (consider the L1E)
- Heavy riders over 220 lbs (100kg max load)
- Those wanting long highway-range electric motorcycles
- Riders without access to private land or off-road parks
Why Choose the Sur-Ron LBX 2023?
In conclusion, the Sur-Ron LBX 2023 represents the most refined version of the electric dirt bike that started a revolution. The 40Ah battery provides meaningful range improvements over previous models. The 4-piston brakes and stronger handlebar mount address prior weak points. The 250Nm of torque delivers instant, exhilarating acceleration.
For off-road riders seeking an incredibly lightweight, silent, and maintenance-friendly dirt bike, the LBX remains the gold standard. Its 45kg weight makes it transportable in almost any vehicle. Its instant torque makes technical climbs almost effortless. Its near-silent operation allows riding on private land without disturbing neighbors.
While competition has emerged from Talaria and others, the Sur-Ron LBX continues to hold its position as the best-selling lightweight electric dirt bike worldwide. The 2023 upgrades ensure it remains competitive and capable.
For more electric motorcycle options, browse our Collection of E-Motos or read our Off-Road E-Bike Guide to compare models.
