The Essential On-Bike Emergency Toolkit
First, a multifunctional repair tool is every cyclist’s insurance policy against trailside breakdowns . Whether you ride a mountain bike, road bike, or e-bike, this compact tool lets you fix common problems . Bolts loosen, cables stretch, and chains break . This tool gets you back home.
Standard Hex Key Sizes Included
Most cycling multitools include the most common hex key sizes . These sizes cover nearly every bolt on modern bicycles.
| Hex Size | Typical Use |
|---|---|
| 2mm | Derailleur limit screws, small components |
| 2.5mm | Some brake lever clamps |
| 3mm | Derailleur clamp bolts, disc brake adjusters |
| 4mm | Stem faceplate, seatpost clamp |
| 5mm | Stem bolts, brake calipers, derailleur cable pinch |
| 6mm | Disc brake rotor bolts, pedals |
| 8mm | Crank arm bolts (square taper) |
The most used sizes are 4mm, 5mm, and 6mm . These three handle stem bolts, brake calipers, and derailleur adjustments . The 8mm size applies to older square-taper crank systems.
Torx T25 Driver
Many modern components use Torx fasteners instead of hex bolts . Disc brake rotors commonly use T25 bolts . Some stem faceplates and suspension components also use Torx . A T25 driver is essential for repairs on newer bikes.
Flathead and Phillips Screwdrivers
Derailleur limit screws typically use Phillips #2 heads . Some brake levers use small flathead screws for reach adjustment . These screwdrivers handle small adjustments that hex keys cannot.
Chain Breaker Tool
A broken chain leaves you stranded without a chain tool . The built-in chain breaker pushes the chain pin out and back in . With this tool, you can shorten a chain or fix a broken link.
Chain breaker usage:
- Align chain link with the tool’s pin
- Turn the handle to push the pin out
- Remove the damaged link
- Re-pin a master link or reconnect the chain
Important: Always carry a quick-link master link with your multitool . The chain breaker cannot reconnect the chain without a replacement pin or quick-link.
Spoke Wrench Compatibility
Loose spokes cause wheel wobble and eventual failure . A spoke wrench lets you true your wheel on the trail . Most multitools include one or two spoke wrench sizes.
Common spoke nipple sizes:
- 3.2mm (black nipples)
- 3.3mm (red nipples)
- 3.4mm (green nipples, most common)
Check your wheel to know which size you need . Some multitools include multiple spoke wrench sizes on one tool.
Bottle Opener Feature
Every cyclist appreciates the bottle opener after a long ride . This feature also opens snap-top repair kits and tire sealant bottles . Not essential but certainly welcome on group rides.

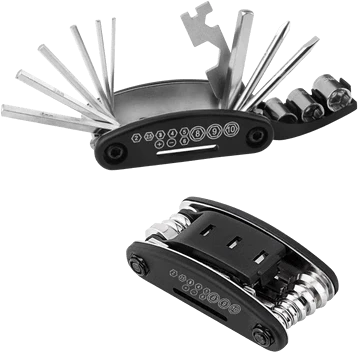

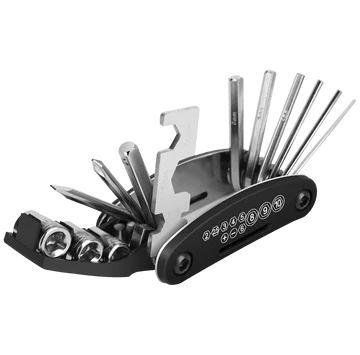

Compact Storage and Portability
The tool folds into a flat, pocket-sized package . Most models measure about 8cm × 4cm × 2cm (3″ × 1.5″ × 0.75″) . They weigh between 120-200 grams (4-7 ounces).
Storage options:
- Jersey pocket
- Saddle bag
- Handlebar bag
- Top tube bag
- Glove compartment
Material and Durability
Quality multitools use hardened steel for the tools . The body is typically aluminum or reinforced nylon . Cheap tools may round off on bolt heads . Spend slightly more for heat-treated chrome vanadium or S2 steel.
Material comparison:
| Steel Type | Durability | Price |
|---|---|---|
| Chrome Vanadium (Cr-V) | Good | Moderate |
| S2 Tool Steel | Excellent | Higher |
| Stainless Steel | Good | Moderate |
| Unhardened steel | Poor (rounds easily) | Low |
Popular Multitool Models
Crankbrothers M19 (19-function):
- 2/2.5/3/4/5/6/8mm hex
- T10, T25 Torx
- #2 Phillips, flathead
- Chain tool
- Spoke wrenches (3.2-3.4mm)
- Bottle opener
- Weight: 163g
Topeak Alien II (26-function):
- Extensive tool selection
- Includes tire levers
- Full chain tool
- Weight: 210g
Topeak Survival Gear Box (17-function):
- 2/2.5/3/4/5/6/8mm hex
- Flathead #2 Phillips
- T25 Torx
- Chain tool (emergency)
- Spoke wrench
- Weight: 88g
Park Tool IB-3 (4-function):
- 4/5/6mm hex
- T25 Torx
- Super compact
- Weight: 45g
Tire Lever Integration
Some multitools include integrated tire levers . These help remove and install tires for tube patches . Separate levers are often stronger and easier to use . For emergency use, integrated levers work fine.
Proper Tool Care
Keep your multitool clean and dry between rides . Apply light oil to the hinge points annually . Check for rust on exposed steel surfaces . Replace the tool if you notice rounding on the hex keys.
E-Bike Specific Considerations
E-bikes use many of the same bolts as acoustic bikes . However, e-bike components often use larger bolts . Disc brake bolts on e-bikes are often 5mm hex or T25 . Battery mount bolts vary by manufacturer.
E-bike specific needs:
- 5mm hex for brake calipers (common on heavy e-bikes)
- T25 for disc rotors (most mid-drive e-bikes)
- 4mm for derailleur adjustments
- 3mm for control pods and displays
Pros of a Quality Multitool
- Covers most trailside repairs
- Fits in pocket or saddle bag
- Multiple hex sizes in one tool
- Chain breaker saves broken rides
- Spoke wrench trues wheels
- Torx T25 covers modern components
- Compact and lightweight
- Bottle opener included on many
- Steel tools resist rounding
Cons
- Can be pricey for good quality ($30-80)
- Chain breaker less durable than standalone tool
- Hard to use in tight spaces
- Handles are short (less leverage)
- May lack the exact spoke wrench size you need
Who Needs This Tool?
A multifunctional repair tool is essential for:
- Mountain bikers fixing trailside breakdowns
- Road cyclists carrying minimal gear
- Commuter riders wanting self-sufficiency
- Touring cyclists needing comprehensive tools
- E-bike owners with mixed fastener types
Why Choose a Quality Multitool?
In conclusion, a multifunctional repair tool can literally save your ride . A single loose stem bolt or broken chain can end a ride early . With a compact multitool, you can tighten, adjust, or repair and keep going.
The most important feature is hex key quality . Heat-treated S2 steel resists rounding better than cheap alternatives . The chain breaker should be sturdy enough for emergency use . Spoke wrenches must match your wheel’s nipple size.
For most cyclists, an 8-12 function tool covers 90% of trailside repairs . Add a spare quick-link and a tire lever for complete peace of mind . Keep the tool in your saddle bag permanently . You never know when you’ll need it.
