Understanding Your 36V Battery Needs

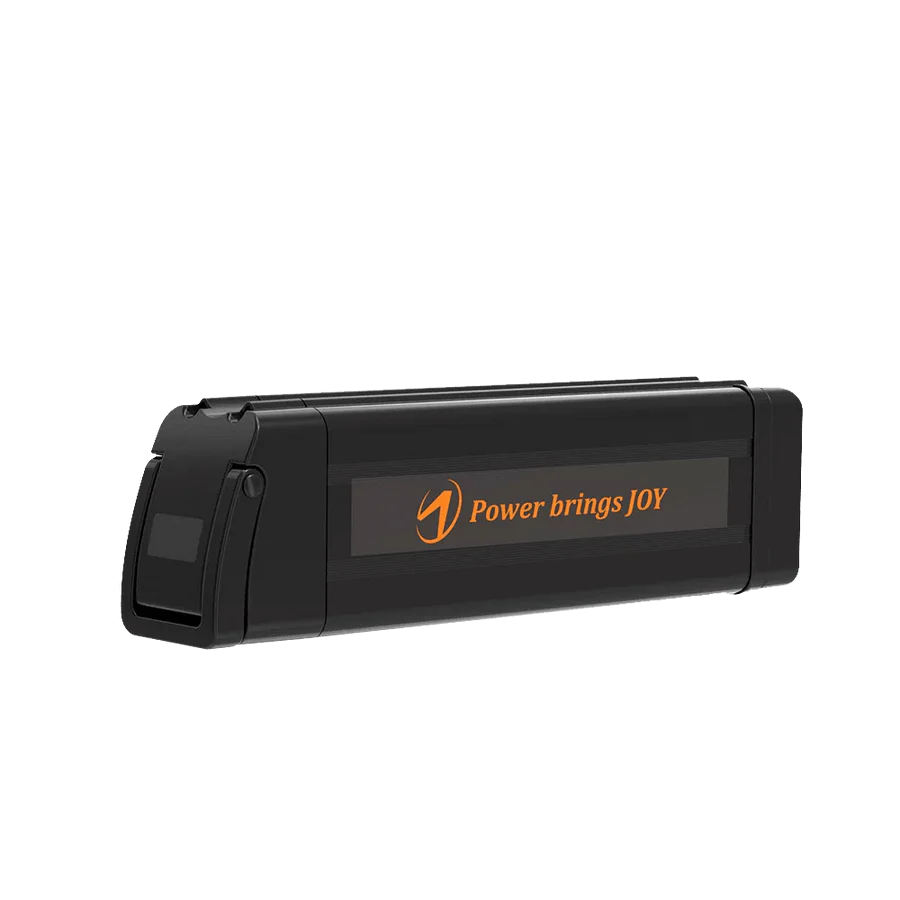

First, the ELECTRIC BIKE BATTERY 36V FOR A20 is a lithium-ion power pack designed for e-bikes with 200W to 800W motors . Whether you need a replacement for a worn-out battery or a spare for extended range, this guide covers everything you need to know about 36V battery specifications, compatibility, and safety features.
Common 36V Battery Capacities
The most common capacities for 36V e-bike batteries are 10Ah, 12Ah, and 14Ah .
| Capacity | Approx. Range* | Best For |
|---|---|---|
| 36V 10Ah | 10-20 miles | Short commutes, casual rides |
| 36V 12Ah | 12-25 miles | Daily commuting, moderate distances |
| 36V 14Ah | 15-30 miles | Longer rides, hilly terrain |
Battery Cell Technology
Most 36V e-bike batteries use 18650 lithium-ion cells arranged in a 10-series, 4-parallel (10S4P) configuration . This means 10 cells are connected in series to achieve 36V (3.6V per cell × 10), and 4 cells are in parallel to increase capacity.
Additionally, premium batteries incorporate cells from brands like Samsung or LG, which offer better cycle life and safety characteristics .
BMS Protection System
A crucial component of any quality 36V battery is the Battery Management System (BMS) . The ELECTRIC BIKE BATTERY 36V FOR A20 should include BMS protection against:
- Overcharge protection – Stops charging when voltage reaches 42V
- Over-discharge protection – Cuts power at approximately 25-30V to prevent cell damage
- Short circuit protection – Prevents dangerous current spikes
- Temperature protection – Monitors battery heat during charging/discharging
- Cell balancing – Ensures all cells maintain similar voltage levels
A BMS rated for 30A peak current is included on quality 36V ebike batteries, supporting continuous discharge of approximately 20A .
Charger Requirements and Specifications
To properly charge a 36V lithium-ion battery, you need a 42V charger . The most common charging specification is 42V 2A .
| Charger Spec | What It Means |
|---|---|
| Voltage output | 42V (for 36V batteries) |
| Current | 2A (standard charging speed) |
| Full charge time | 4-7 hours (for 10-14Ah capacity) |
The charger should include protection against overcurrent and short circuits for safe operation .
Connector Types to Match Your E-Bike
One of the most important compatibility factors is the connector type. The ELECTRIC BIKE BATTERY 36V FOR A20 may use one of several common connectors:
- 3-Pin (GX16-3) – Common round connector for many e-bike brands
- DC barrel connector – Simple cylindrical plug
- 4-Pin XLR – Used by some brands like Juiced
Therefore, before purchasing a replacement or spare 36V battery, always verify the connector type on your current battery or bike.
Battery Dimensions and Mounting
Typical 36V e-bike batteries come in two common form factors:
- Hailong style (downtube mount): Approximately 360 × 110 × 90mm (14.5 × 4.5 × 3.5 inches)
- Bottle style: Approximately 99 × 345mm (cylinder shape)
The battery should include a mounting base that attaches to your bike’s frame, along with a locking mechanism (usually key-operated) to secure the battery .
Compatible Motor Power Range
A 36V 10Ah-14Ah battery is compatible with e-bike motors ranging from 200W to 800W . This includes common motor sizes:
- 250W (standard commuter e-bikes)
- 350W (slightly more powerful climbs)
- 500W (moderate hill climbing ability)
- 750W-800W (powerful fat tire e-bikes)
LED Power Indicator
Most replacement 36V batteries include a built-in LED power indicator on the battery casing . Typically, this shows:
- Red light – Charging in progress or low battery
- Green lights (1-3) – Indicates remaining charge level
- Charging status – Red light during charge, green when fully charged
Expected Battery Lifespan
A quality 36V lithium-ion battery will last for 800-1000 charge cycles before capacity drops significantly . Assuming you charge your e-bike every other day, this translates to approximately 4-5 years of useful life .
Factors that reduce lifespan:
- Storing at full charge or completely empty
- Extreme temperatures (below 0°C or above 45°C during charging)
- Frequent deep discharges
Pros:
- 10Ah-14Ah capacity options for different range needs
- Built-in BMS for overcharge, short circuit, and temperature protection
- Includes 42V 2A charger with most purchases
- Compatible with 200W-800W e-bike motors
- 4-5 year lifespan (800-1000 cycles)
- LED power indicator for status at a glance
- Key lock mounting system
- Lightweight at approximately 3.1-4.5 kg (7-10 lbs)
Cons:
- Replacement batteries can be expensive (150−300+)
- Not all 36V batteries fit all e-bikes (different connectors/mounts)
- Chinese generic batteries may have lower quality cells
- Some require 7+ hours for full charge with 2A charger
ELECTRIC BIKE BATTERY 36V FOR A20: Technical Specifications
General Specifications
- Nominal Voltage: 36V DC
- Charging Voltage: 42V DC
- Discharge Cut-off Voltage: 25-30V (BMS controlled)
- Battery Type: Lithium-ion (Li-ion)
- Cell Type: 18650
- Configuration: 10S4P (10 series, 4 parallel)
Capacity Options
- 36V 10Ah: 360Wh capacity
- 36V 12Ah: 432Wh capacity
- 36V 14Ah: 504Wh capacity
BMS Specifications
- BMS Peak Current: 30A
- BMS Continuous Discharge: 20A
- Protections: Overcharge, over-discharge, short circuit, temperature, cell balancing
Physical Specifications
- Hailong Style Dimensions: 14.5 × 4.5 × 3.5 inches (360 × 110 × 90mm)
- Bottle Style Dimensions: 99 × 345mm
- Weight (10Ah): Approximately 3.1 kg (6.8 lbs)
- Weight (12-14Ah): Approximately 3.8-4.5 kg (8.4-10 lbs)
Charger Specifications
- Charger Output: 42V DC
- Charger Current: 2A standard
- Charging Time (10Ah): 4-5 hours
- Charging Time (14Ah): 6-7 hours
Environmental Specifications
- Charging Temperature: 0°C to 45°C (32°F to 113°F)
- Discharging Temperature: -20°C to 60°C (-4°F to 140°F)
- Cycle Life: 800-1000 cycles (80% depth of discharge)
- Certifications: CE, RoHS (varies by manufacturer)
Compatibility
- Motor Power Range: 200W – 800W
- Common Connectors: 3-pin GX16, DC barrel, 4-pin XLR (verify before purchase)
- Mounting Style: Downtube (Hailong) or seatpost (bottle style)
Who Needs a Replacement 36V Battery?
The ELECTRIC BIKE BATTERY 36V FOR A20 is perfect for:
- E-bike owners whose original battery no longer holds a charge
- Riders wanting a spare battery for extended range on long trips
- DIY e-bike builders looking for a standard 36V power source
- Owners of 250W-500W commuter e-bikes needing a replacement
- Anyone who wants to upgrade from a worn-out lead-acid system
Why Choose the Right 36V Battery?
In conclusion, selecting the correct ELECTRIC BIKE BATTERY 36V FOR A20 requires matching several key specifications: voltage (36V), capacity (10Ah-14Ah), connector type, physical dimensions, and BMS protection features .
The most important compatibility factors are the connector type and mounting style . Always verify these match your existing battery before purchasing.
For safe charging, always use the included 42V charger and avoid charging overnight unattended or in extreme temperatures . A quality BMS will protect against overcharge and short circuits, but proper usage habits extend battery life significantly.
If you cannot confirm your specific e-bike model “A20,” refer to the physical battery in your possession. Check the label for nominal voltage (36V) and measure the dimensions of your battery or mounting base to ensure a proper fit .
