Why Choose the Shimano Saint Disc Brake?
The Shimano Saint disc brake is engineered for the most aggressive riding disciplines, including downhill, freeride, and heavy e-bike use. Unlike standard brakes, the Saint model is specifically e-bike rated. Therefore, it can handle the additional weight and momentum of electric bikes without compromising performance. Furthermore, this brake system is trusted by professional downhill racers worldwide.
Power and Modulation You Can Trust
This four-piston caliper brake delivers immense stopping power. For example, it allows you to feather the brakes on loose terrain or lock them up instantly for emergency stops. In addition, the Servo Wave lever mechanism reduces free stroke and increases pad contact speed. As a result, you get a crisp, immediate bite point with every pull. Consequently, whether you are on a 60-pound e-bike or a downhill race rig, the Shimano Saint provides control and confidence. Meanwhile, inferior brakes often feel spongy or inconsistent under the same conditions.
Advanced Heat Management for Long Descents
Heat fade is a major problem on long downhill runs. However, the Shimano Saint solves this effectively. For instance, it uses Ice Technologies rotors together with finned metal pads to dissipate heat rapidly. Moreover, the mineral oil fluid maintains consistent performance even in extreme temperatures. Therefore, your brakes feel the same at the bottom of the mountain as they did at the top. Despite its heavy-duty construction, the system remains remarkably easy to maintain.
User-Friendly Adjustments and Maintenance

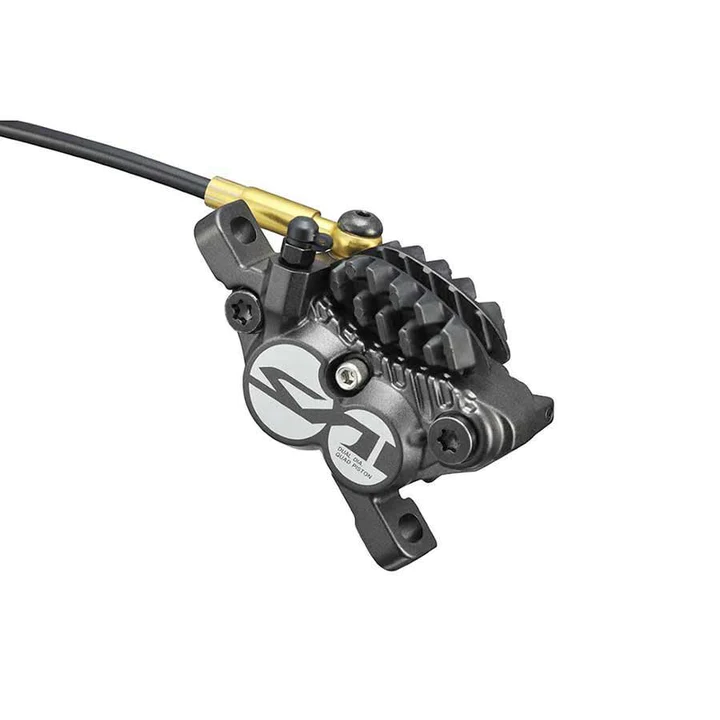

The caliper features a banjo-style hose connection for flexible routing. Likewise, the lever offers tool-free reach adjustment for personalized ergonomics. As a result, riders can fine-tune their setup within seconds. Finally, the system is easy to bleed and uses widely available spare parts.
Pros:
- Four-piston caliper for maximum stopping power
- Excellent heat dissipation (Ice Tech pads + rotor compatible)
- Servo Wave lever for instant engagement
- E-bike approved for heavy loads
- Tool-free reach adjustment
- Reliable mineral oil hydraulic system
Cons:
- Heavier than XC/trail brakes (approx. 380g front w/o rotor)
- Overkill for light cross-country riding

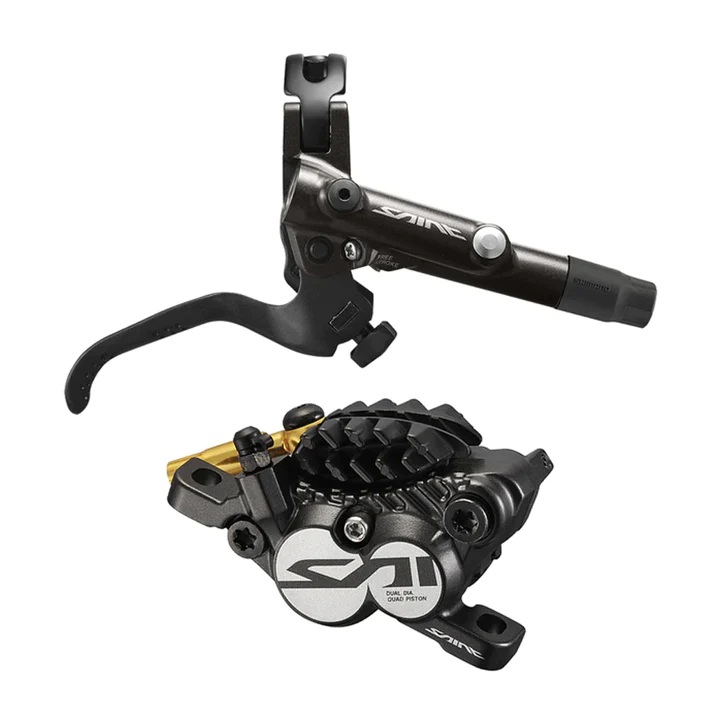

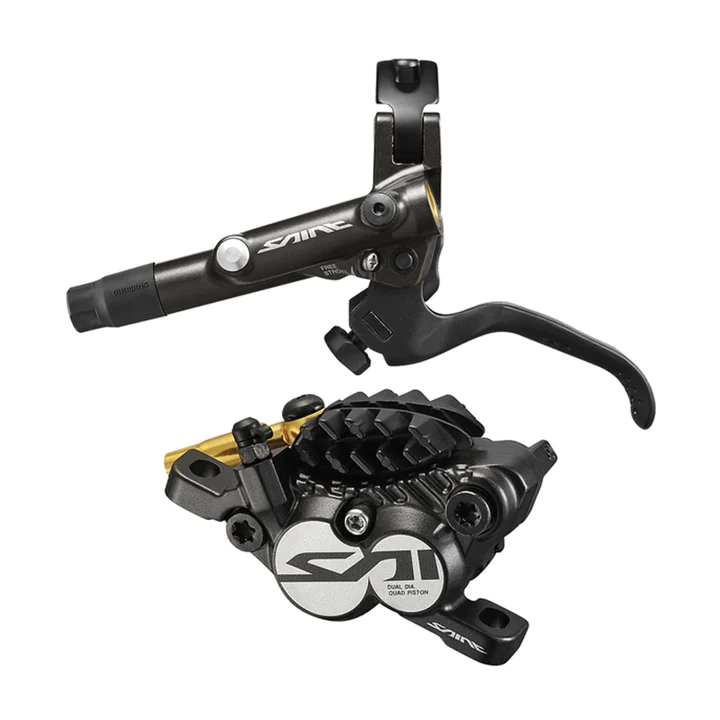

SHIMANO SAINT DISC BRAKE – M820: Technical Specifications
- Model: Shimano Saint M820
- Mount Type: Post mount (adapters available for flat mount)
- Caliper Pistons: 4 ceramic pistons
- Recommended Rotor: SM-RT86 (6-bolt) or RT-EM (Center Lock) – 180mm/203mm
- Brake Pad Type: Finned metal or resin (H-Type)
- Lever: Servo Wave, 2-finger design
- Hose: Banjo-type, stainless steel braided (optional)
- Fluid: Shimano mineral oil
- Adjustment: Tool-free reach & stroke
- E-Bike Compatibility: Yes (Class 1–3)
- Average Weight: 380g (caliper + lever, no rotor)
Final Verdict
Experience the gold standard in gravity braking with the Shimano Saint disc brake. Ultimately, it is designed for riders who punish their equipment on steep, technical terrain. For example, Saint delivers relentless stopping power that never fades. In addition, the four-piston caliper provides consistent clamp force, while the Servo Wave lever ensures power is always ready at your fingertip. For e-bike users, this brake is a game-changer—controlling over 60 pounds of bike and rider with ease. Therefore, upgrade your braking system today and feel the difference that pro-level components make.
