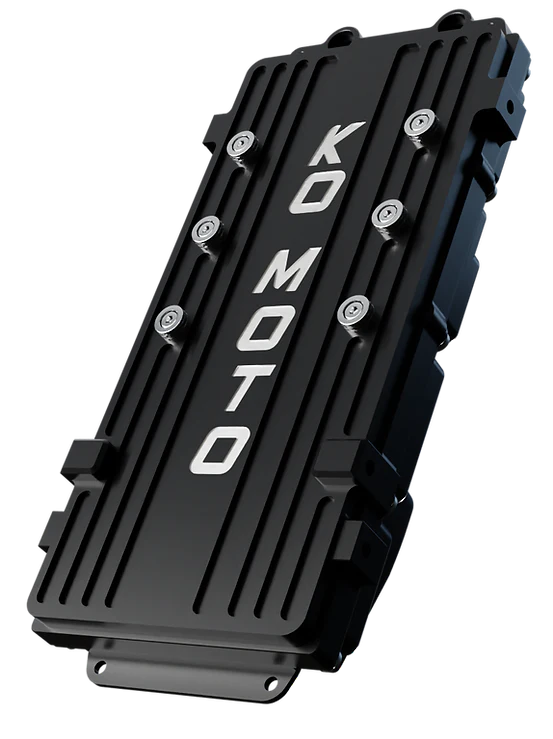

KO MOTO NANO CONTROLLER

KO MOTO NANO CONTROLLER – High-Performance E-Bike Controller: Features

Why Choose the KO Moto Nano Controller?

First of all, the KO Moto Nano controller is a revolutionary e-bike controller that packs incredible performance into an ultra-compact housing. In contrast to traditional controllers that are bulky and difficult to mount, the Nano controller measures just 110mm x 65mm x 35mm. Because of this, it fits easily inside most e-bike frames, battery boxes, or even under a saddle. In addition, this controller delivers up to 3000W peak power (1500W continuous) despite its small size. As a result, it is perfect for high-performance builds where space is limited but power is essential. Furthermore, the Nano controller is fully programmable via a smartphone app. Consequently, you can tune your e-bike’s performance without a laptop or complicated software. Finally, the app is available for both iOS and Android devices.

Impressive Power in a Tiny Package

To begin with, the KO Moto Nano controller uses high-efficiency MOSFETs and advanced thermal management. More specifically, the aluminum housing acts as a heatsink, drawing heat away from internal components. For this reason, the controller can sustain high power levels without overheating or throttling back. Additionally, the Nano supports both hall sensor and sensorless motor operation. For example, you can use it with virtually any brushless DC hub motor or mid-drive motor. Because of its versatility, it works across many different e-bike builds. Similarly, the controller supports battery voltages from 36V to 72V. Therefore, you can use it with standard 48V e-bike batteries or high-performance 72V racing packs. Moreover, the peak current is adjustable up to 60A. Consequently, you can unlock massive torque for hill climbing or quick acceleration.

Bluetooth App Tuning and Customization

Beyond its raw power, the KO Moto Nano controller features built-in Bluetooth connectivity. For instance, you can connect the controller to KO Moto’s free smartphone app. Using this app, you can adjust phase current, battery current, throttle response, and regenerative braking strength. In addition, you can create custom pedal-assist profiles with different power levels. As a result, your e-bike can behave differently for commuting versus off-road riding. Meanwhile, the app displays real-time data, including battery voltage, motor temperature, controller temperature, and estimated range. Because of this feature, you can monitor your system’s health during every ride. Furthermore, the controller supports firmware updates via the app. Thus, you will always have the latest features and optimizations. Finally, the app allows you to save and share your tuning profiles. Accordingly, you can download setups from other riders or share your own.

Ultra-Compact Design for Clean Builds

As everyone knows, finding space for e-bike components can be challenging, especially on full-suspension frames. Nevertheless, the KO Moto Nano controller solves this problem entirely. For example, it is small enough to fit inside a standard battery box alongside the battery itself. Moreover, it can be mounted under a rear fender, inside a frame bag, or even inside a hollow fork steerer tube on cargo bikes. Because of its tiny footprint, your e-bike looks cleaner with fewer exposed wires and components. In addition, the controller uses sealed waterproof connectors (IP65 rated). Therefore, it is safe from rain, mud, and pressure washing. Similarly, the aluminum housing is corrosion-resistant and durable. Consequently, the Nano controller will last for years even in harsh riding conditions.

Compatibility with Major E-Bike Systems

Another key advantage of the KO Moto Nano controller is its broad compatibility. To be specific, it works with most common e-bike throttles, displays, and torque sensors. For instance, you can pair it with the KO Moto P9 display for a complete system. In addition, the controller supports CAN bus and UART communication protocols. Because of this, it can communicate with many stock e-bike batteries and displays. Furthermore, the Nano controller is compatible with throttle-only, pedal-assist-only, or combined operation modes. As a result, you can configure your e-bike exactly how you want it. Finally, the controller includes a 5V output for powering lights or accessories. Consequently, you do not need a separate voltage converter for small accessories.

Easy Installation and Setup

When it comes to installation, the KO Moto Nano controller is designed for straightforward setup. Specifically, it uses standard Julet or Higo waterproof connectors (adapters are available for other connector types). Therefore, you can often plug it directly into your existing e-bike wiring harness. In addition, the controller includes a detailed wiring diagram and color-coded wires. For example, the motor phase wires are yellow, green, and blue (standard). Because of this clarity, most DIY builders can complete an installation in under an hour. Similarly, the Bluetooth app guides you through initial setup steps. Thus, you do not need to be a programming expert. Finally, the controller automatically detects hall sensor wiring combinations. Accordingly, you do not need to guess or manually test phase and hall wire orders.

Pros and Cons at a Glance

Pros:

• Ultra-compact size (110mm x 65mm x 35mm)
• Up to 3000W peak power (1500W continuous)
• 36V to 72V battery compatibility
• Bluetooth app tuning (iOS and Android)
• Adjustable phase and battery current (up to 60A peak)
• Regenerative braking support
• IP65 waterproof rating
• Hall sensor and sensorless motor support
• Compatible with most hub and mid-drive motors
• CAN bus and UART communication

Cons:

• Requires smartphone for full tuning (no physical programming button)
• App can be complex for beginners
• Peak power requires high-discharge battery (60A+ capable)
• No integrated display (must purchase separately or use phone)
• More expensive than generic Chinese controllers

Technical Specifications

Final Verdict

In conclusion, the KO Moto Nano controller is the perfect choice for e-bike builders who want maximum power in a minimum footprint. Specifically, it solves the common problem of bulky, ugly controllers that ruin a clean e-bike aesthetic. If you are building a stealth off-road e-bike, a lightweight commuter, or a high-performance cargo bike, this controller delivers outstanding results. For example, the 3000W peak power provides thrilling acceleration while the compact size hides completely inside your frame. In addition, the Bluetooth app puts professional-level tuning in your pocket. Furthermore, the broad voltage and motor compatibility means this controller can grow with your project. Therefore, while the upfront cost is higher than generic controllers, the features, size, and tuning capabilities are unmatched. Ultimately, you should upgrade your e-bike with the KO Moto Nano controller today. Otherwise, you may continue struggling with large, dumb controllers that cannot be tuned or monitored. As a final suggestion, pair the Nano controller with a high-discharge 52V or 72V battery and a KO Moto display for the complete high-performance e-bike system.
