The Lightweight Electric Trail Revolution

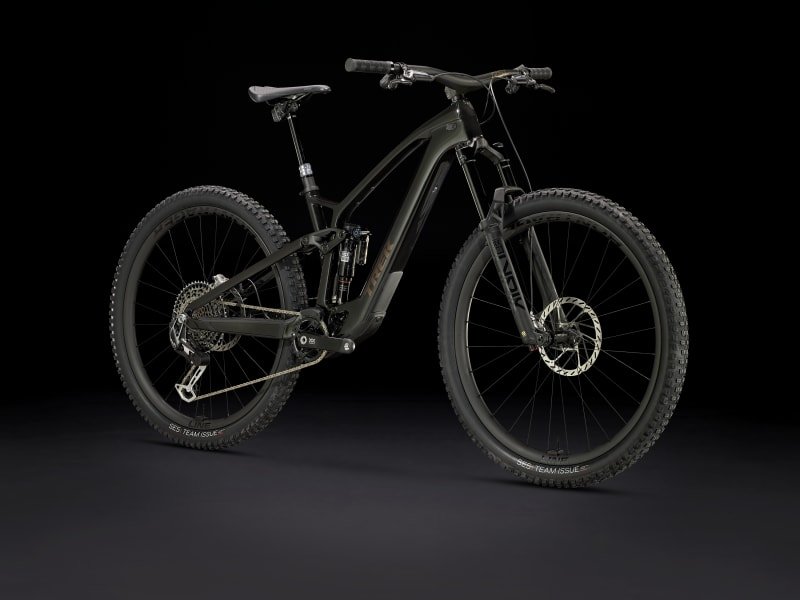

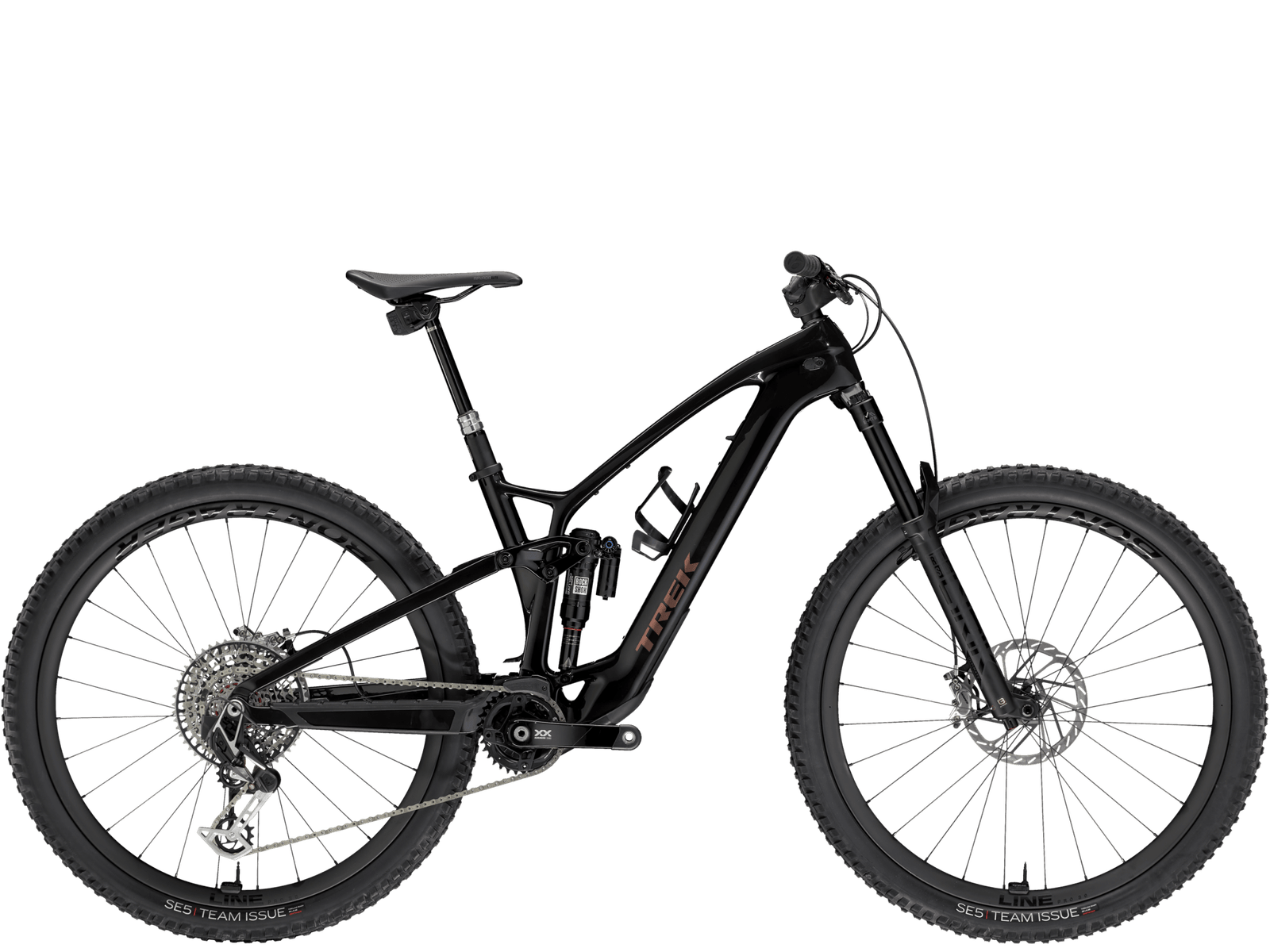

First, the TREK Fuel EXe 9.9 XX AXS T-Type Bicycle represents a new category of e-MTB that bridges the gap between traditional mountain bikes and full-power electric bikes. As a result, it delivers a natural, quiet riding experience that feels like you’re simply a stronger version of yourself, not a motor-assisted machine.

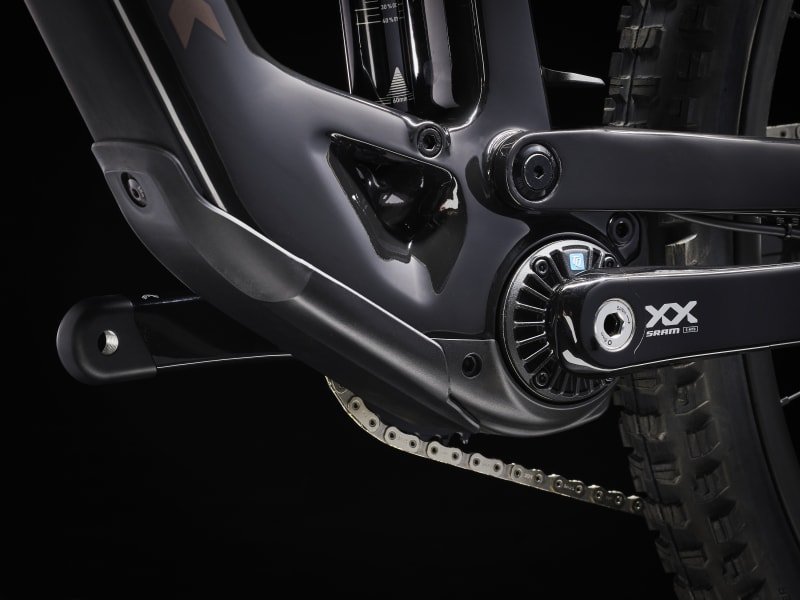

Revolutionary TQ-HPR50 Motor
At the heart of this bike is the TQ-HPR50 harmonic pin ring drive system, which Pinkbike named “Innovation of the Year”. The TREK Fuel EXe 9.9 XX AXS T-Type Bicycle produces 50Nm of torque with 250 watts of continuous power (300 watts peak). Furthermore, the motor is nearly silent, earning praise for its “frictionless” pedaling feel.
360Wh Integrated Battery with Range Extender

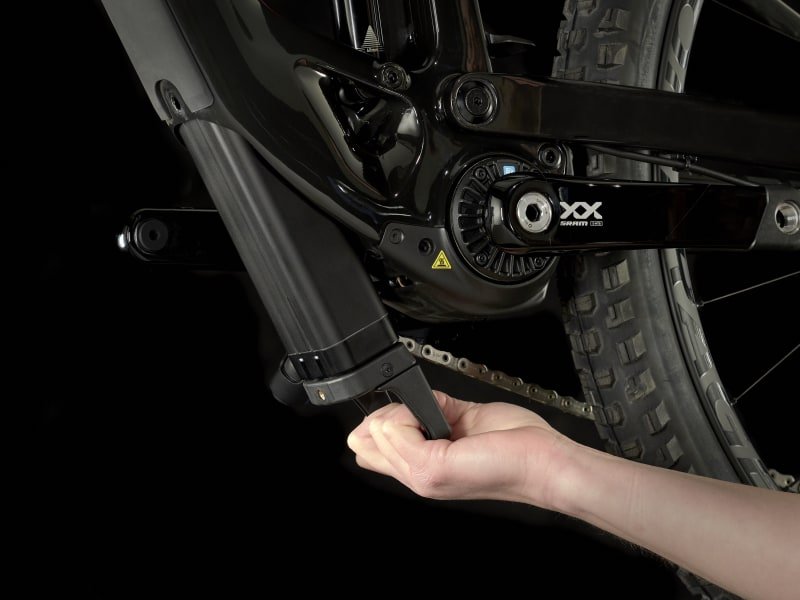

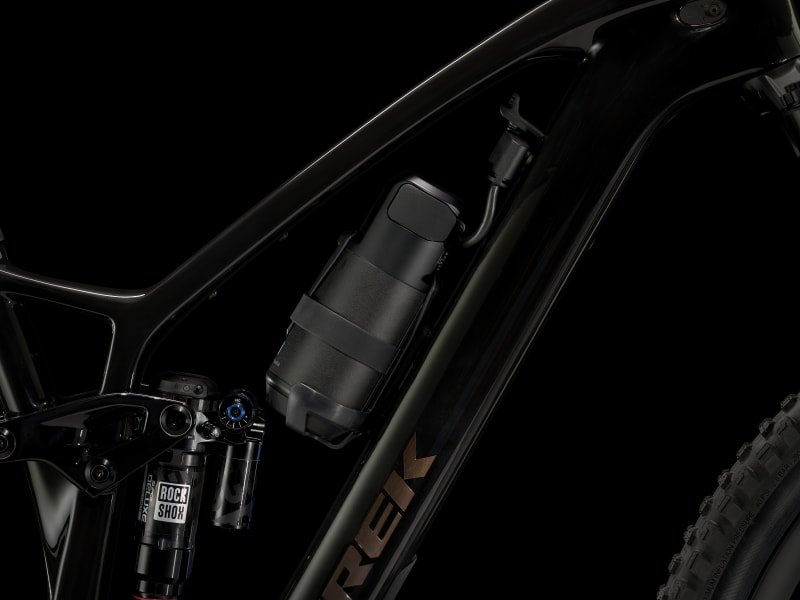

The bike features a 360Wh battery seamlessly hidden inside the downtube, providing 2-5 hours of ride time. Moreover, the TREK Fuel EXe 9.9 XX AXS T-Type Bicycle is compatible with an optional 160Wh Range Extender that adds 40% more range and fits in a standard bottle cage. Consequently, longer adventures are easily achievable.
OCLV Mountain Carbon Frame

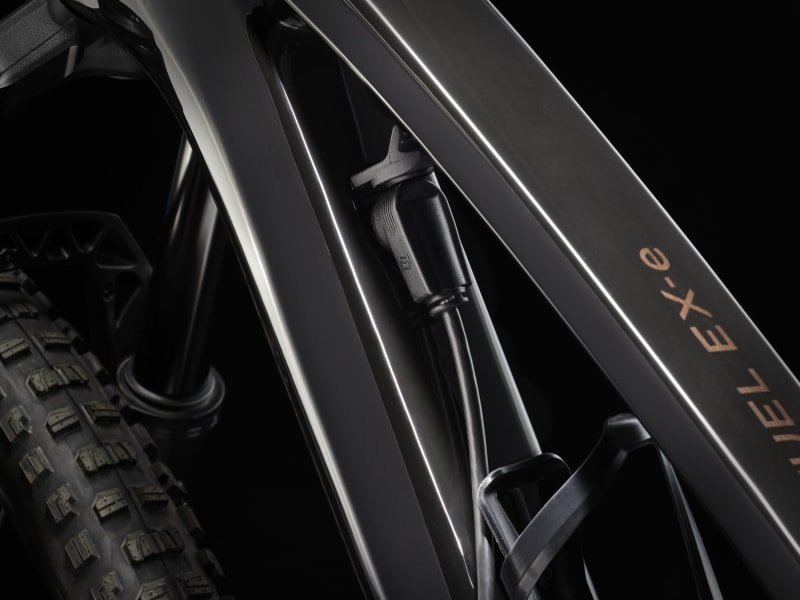

The frame is constructed from Trek’s premium OCLV Mountain Carbon, offering exceptional strength-to-weight ratio while keeping the bike remarkably light. Additionally, the TREK Fuel EXe 9.9 XX AXS T-Type Bicycle features internal frame storage for trail essentials and a removable battery design for convenient charging.
RockShox Lyrik Ultimate Fork and Super Deluxe Shock

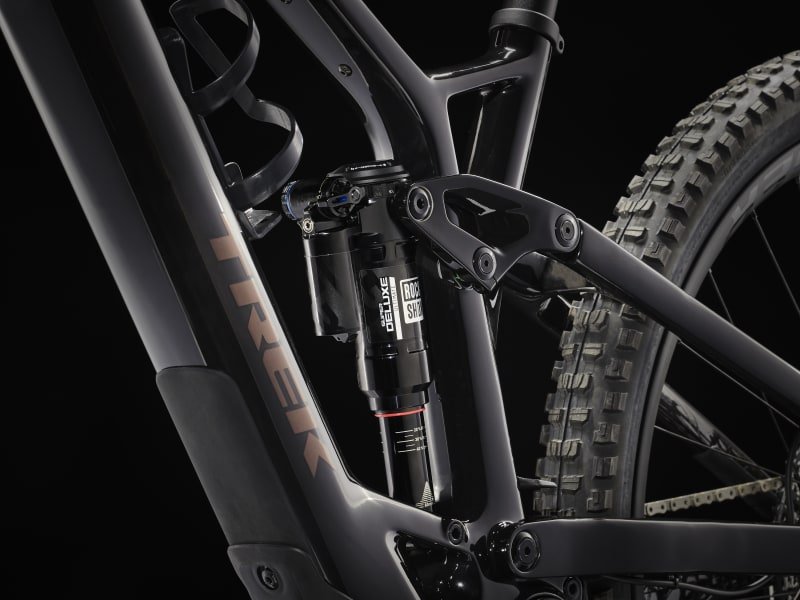

When it comes to suspension, this model spares no expense. The RockShox Lyrik Ultimate fork delivers 150mm of travel with DebonAir+ spring technology and ButterCups to reduce high-frequency vibration. Meanwhile, the RockShox Super Deluxe Ultimate shock provides 140mm of rear travel with an RCT2 damper.
AirWiz and TyreWiz Integration

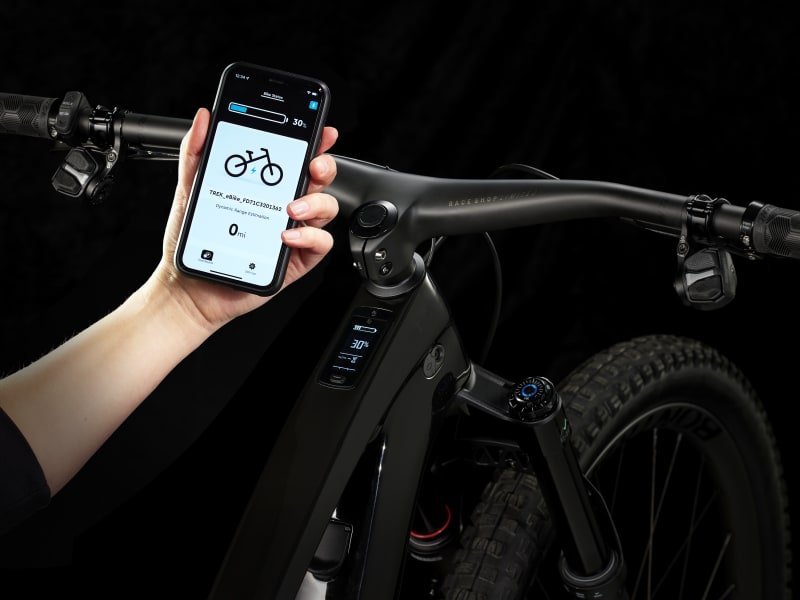

What’s more, the TREK Fuel EXe 9.9 XX AXS T-Type Bicycle includes AirWiz and TyreWiz monitors that track fork, shock, and tire pressure. Therefore, you can set your desired pressure in the SRAM AXS app and check the lights before each ride — green means go, red means you need a pump.
SRAM XX Eagle AXS T-Type Wireless Drivetrain
The drivetrain is fully wireless and T-Type, meaning the derailleur mounts directly to the frame without a fragile hanger. The TREK Fuel EXe 9.9 XX AXS T-Type Bicycle features a 10-52T cassette and 32T chainring, providing massive climbing range for any trail.
SRAM Code Ultimate or Maven Ultimate Brakes

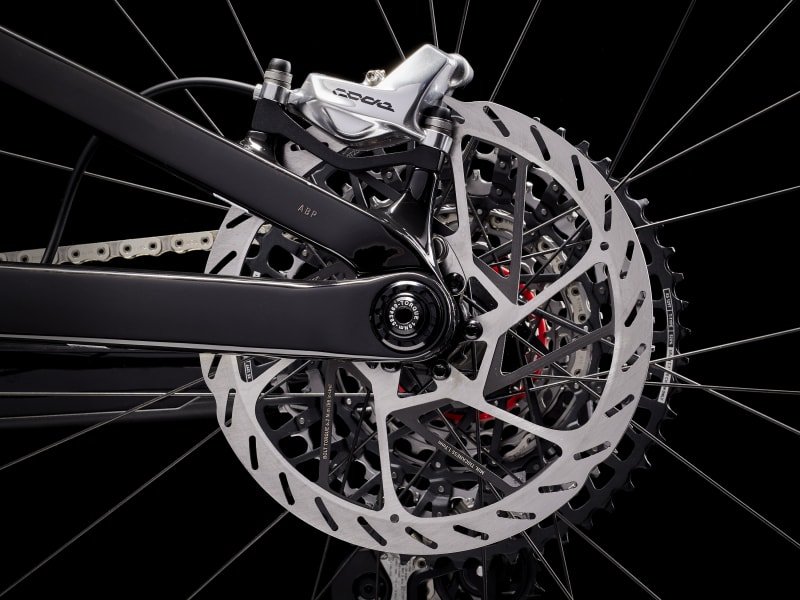

For stopping power, the bike is equipped with SRAM 4-piston hydraulic disc brakes — either Code Ultimate or Maven Ultimate depending on the build. As a result, you get exceptional modulation and fade-free performance with 200mm rotors front and rear.
Bontrager Line Pro Carbon Wheels
The wheels are Bontrager Line Pro 30 carbon hoops with Rapid Drive 108 hubs providing near-instant acceleration. Furthermore, the TREK Fuel EXe 9.9 XX AXS T-Type Bicycle comes with Bontrager SE5 Team Issue tires (29×2.50″) featuring Core Strength sidewalls for puncture resistance.
RockShox Reverb AXS Wireless Dropper Post
The dropper post is fully wireless and size-specific: 100mm for size S, 150mm for size M, and 170mm for sizes L and XL. Consequently, every rider gets optimal drop on descents.
Mino Link Adjustable Geometry
The frame features Mino Link technology that lets you fine-tune head tube angle by 0.5° and bottom bracket height by up to 10mm. Thus, you can choose between two geometry positions without affecting suspension performance.
Complete Tubeless System
The bike ships as a complete tubeless system with TLR rim strips, valves, and sealant included. Therefore, you get better traction, fewer flats, and reduced weight straight from the box.
BITS Multi-Tool in Steerer Tube
Finally, a cleverly integrated BITS multi-tool is hidden inside the steerer tube, giving you everything you need for trail-side adjustments and repairs.
Pros:
- TQ-HPR50 quiet, natural-feeling motor (Pinkbike Innovation of the Year)
- Lightweight carbon frame and wheels (18.98 kg / 41.85 lbs)
- 360Wh battery + optional 160Wh Range Extender
- SRAM XX Eagle AXS T-Type wireless transmission
- RockShox Lyrik Ultimate fork (150mm) + Super Deluxe Ultimate shock (140mm)
- RockShox Reverb AXS wireless dropper post
- Bontrager Line Pro 30 carbon wheels
- AirWiz & TyreWiz pressure monitors included
- Mino Link adjustable geometry
- Internal frame storage and BITS multi-tool
- Weight limit: 300 lbs (136 kg)
Cons:
- Very expensive (flagship pricing)
- 360Wh battery capacity lower than full-power e-MTBs
- 50Nm torque adequate but less than 85-90Nm competitors
- May not be enough for riders wanting max power
TREK Fuel EXe 9.9 XX AXS T-Type Bicycle: Technical Specifications
Frame and Suspension Specifications
- Frame: OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
- Fork: RockShox Lyrik Ultimate, AirWiz, DebonAir+ w/ ButterCups, Charger 3.1 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 150mm travel
- Shock: RockShox Super Deluxe Ultimate AirWiz RC2T, 205mm x 60mm
Drivetrain Specifications

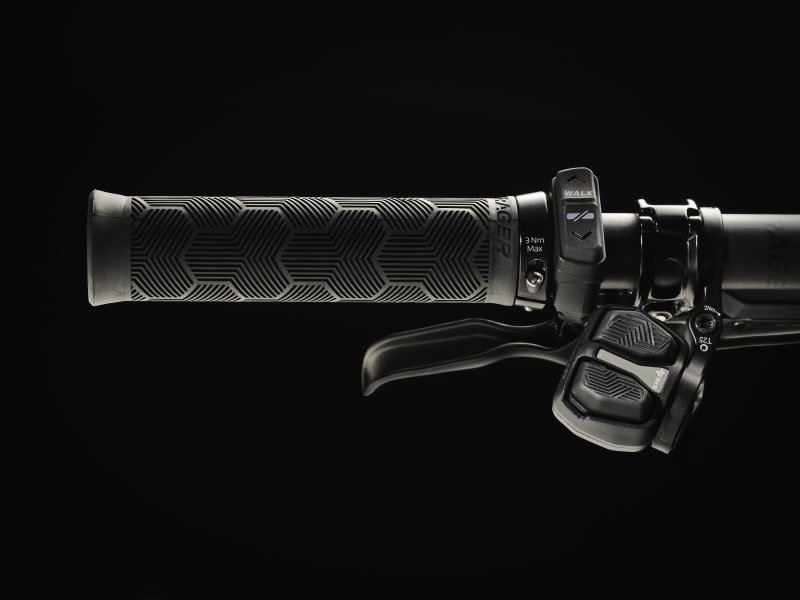

- Shifters: SRAM AXS POD Ultimate, paired with dropper
- Rear Derailleur: SRAM XX Eagle AXS, T-Type
- Crankset: SRAM XX Eagle T-Type, 165mm length, 32T chainring
- Cassette: SRAM Eagle XS-1297, T-Type, 10-52T, 12-speed
- Chain: SRAM XX Eagle, T-Type, 12-speed
Brake and Wheel Specifications
- Brakes: SRAM Code Ultimate or Maven Ultimate 4-piston hydraulic disc
- Rotors: SRAM HS2, 6-bolt, 200mm
- Wheels: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108 hubs
- Tires: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″
E-Bike System Specifications
- Motor: TQ-HPR50, 50 Nm, 250W continuous (300W peak)
- Battery: TQ 360Wh integrated (removable)
- Charger: TQ 4A
- Range Extender: Optional 160Wh
- E-bike Classification: Class 1
Cockpit and Contact Points
- Handlebar/Stem: Bontrager RSL integrated, OCLV Carbon, 27.5mm rise, 820mm width, 45mm length
- Grips: Bontrager XR Trail Elite, nylon lock-on
- Saddle: Bontrager Arvada, austenite rails, 138mm width
- Seatpost: RockShox Reverb AXS, wireless (100mm S, 150mm M, 170mm L/XL)
Sizing and Fit
Weight and Limits
Colors
Who Is This Bike For?
The TREK Fuel EXe 9.9 XX AXS T-Type Bicycle is perfect for:
- Riders seeking a lightweight, natural-feeling e-MTB
- Experienced mountain bikers wanting electric assistance without the heavy, “moped” feel
- Riders who prioritize quiet operation and seamless power delivery
- Technology enthusiasts who appreciate wireless components and smart monitors
- Anyone wanting a “best of both worlds” bike between analog and full-power e-MTB
Why Choose the Fuel EXe 9.9 XX AXS T-Type?
In conclusion, the TREK Fuel EXe 9.9 XX AXS T-Type Bicycle represents a watershed moment for electric mountain biking. Unlike full-power e-MTBs that can feel heavy and intrusive, this bike delivers subtle, natural assistance that makes you feel like a younger, fitter version of yourself.
The TQ-HPR50 motor is the star of the show — nearly silent, frictionless, and intuitive. As a result, you’ll forget you’re on an e-bike until you crest a climb with fresh legs. Furthermore, the integration of RockShox AirWiz and SRAM TyreWiz means your suspension and tire pressures are always dialed.
The component spec is truly top-tier: SRAM XX Eagle AXS T-Type transmission, carbon wheels, RockShox Ultimate suspension, and wireless Reverb dropper. Therefore, this bike is ready to dominate any trail straight from the box.
Finally, for riders who want the finest lightweight e-MTB experience available, the TREK Fuel EXe 9.9 XX AXS T-Type Bicycle is the ultimate choice.
