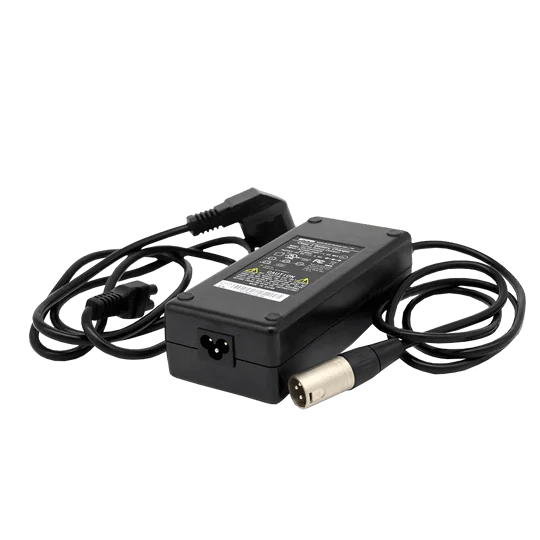

Understanding Your 36V E-Bike Charger
First, a 36V electric bike charger delivers a charging voltage of 42V DC to properly charge a 36V nominal lithium-ion battery pack . Whether you need a replacement charger or a spare for travel, understanding the specifications ensures safe and efficient charging for your e-bike.
The key specification to remember is that a 36V lithium battery requires a 42V charger – never use a 36V lead-acid charger as it lacks proper termination circuitry .
Why 42V Output for 36V Batteries?
A 36V lithium-ion battery consists of 10 cells connected in series (10S configuration). When fully charged, each cell reaches 4.2V, totaling 42V . Therefore, the charger must supply 42V to fully charge the battery, while the battery’s built-in BMS (Battery Management System) protects against overcharging.
| Battery Type | Nominal Voltage | Full Charge Voltage |
|---|---|---|
| 36V Li-ion (10S) | 36V | 42V |
| 36V LiFePO4 | 38.4V | 43.8V |
Important: LiFePO4 batteries (common for larger capacity packs) require a charger with 43.8V output – not standard 42V .
Standard Charging Amperage: 2A
The most common 36V e-bike charger delivers 2 amps (2A) , providing a balance between charging speed and battery longevity . A 2A charger will fully charge a typical 10Ah-14Ah battery in 4-7 hours .
Charging speed considerations:
- 2A (standard) – Slower charging extends battery cycle life (800-1000 cycles)
- 3A-4A (fast) – Faster charging, but may reduce overall battery lifespan
- 0.5A-1A (trickle) – For maintenance charging only
Connector Types: What to Look For
The connector must match your specific e-bike model. Common 36V charger connectors include :
| Connector Type | Common Brands | Pin Count |
|---|---|---|
| DC Barrel (5.5×2.5mm) | Generic, Qoltec | 2-pin |
| GX12 | Qoltec, generic | 3-pin |
| GX16 | Qoltec | 3-pin |
| 4-Pin | Decathlon Elops | 4-pin |
| XLR | Addmotor, generic | 4-pin |
Before purchasing, verify the connector type on your current charger or e-bike battery port.
Compatibility by E-Bike Brand
According to CyberPika’s compatibility testing (as of November 2025), 36V chargers work with the following brands :
- Lectric: All XP series (1.0, 2.0, 3.0, 4.0), XP Lite, XPremium
- Aventon: Pace 350/500 series, Soltera (all variants), Level, Sinch
- Rad Power: All models (36V and 48V systems require correct voltage match)
- Ride1Up: Roadster V2/V3, Portola, Turris, 500/700 Series
- Himiway, Heybike, Ecotric: All models
Critical note: Always confirm your battery voltage (36V vs 48V) before purchasing – using a 36V charger on a 48V battery will not charge it properly.
Safety Features to Look For
A quality 36V charger incorporates multiple protection systems :
- Overcharge Protection – Automatically stops charging when battery reaches 42V
- Short Circuit Protection – Prevents dangerous current spikes
- Overheat Protection – Reduces power or shuts off if internal temperature exceeds limits
- Reverse Polarity Protection – Prevents damage from incorrect connection
- LED Status Indicator – Red light while charging, green when complete
Always choose chargers with CE, RoHS, or UL certification .
How to Choose the Right 36V Charger
Follow this checklist when selecting a replacement charger:
- Verify voltage: Your battery must say “36V” (not 48V or 52V)
- Match connector type: Check your current charger’s plug
- Confirm amperage: 2A is standard; higher amps charge faster
- Check certifications: Look for CE, RoHS, or UL marks
- Read reviews: Avoid uncertified “universal” chargers
URGENT Safety Warning: Avoid These Chargers
The U.S. Consumer Product Safety Commission (CPSC) warns consumers to immediately stop using SafPow SPC-42020 and AMPOWSURE ASP-C10S42020 battery chargers .
These chargers have been linked to:
- 47 reported fires or thermal incidents
- 3 burn and smoke inhalation injuries
- $100,200 in property damage
These products are marketed as “universal” 36V chargers but can be incompatible with certain batteries, causing them to ignite . If you own one, dispose of it immediately.
The manufacturer has refused to conduct a recall – CPSC issued this warning in September 2024 .
Recommended 36V Charger Options
QOLTEC 36V–42V 2A (GX12 3-pin)
- Output: 36-42V, 2A
- Connector: GX12 3-pin (circular)
- Price: €19.99
- Warranty: 2 years
QOLTEC 36V–42V 2A (GX16 3-pin)
- Output: 36-42V, 2A
- Connector: GX16 3-pin (larger circular)
- Price: €19.49
- Warranty: 2 years
QOLTEC 42V 2A (5.5×2.5mm barrel)
- Output: 42V, 2A (84W)
- Connector: DC barrel 5.5×2.5mm
- Cable length: 1.1m
- Weight: 335g
- Warranty: 2 years
- CE+WEEE certified
Decathlon Elops 36V 2A (4-pin)
- Output: 36V, 2A
- Connector: 4-pin
- Compatibility: Elops 120E, 900E, 920E; B’Ebike 700E, 900E
- Weight: 660g
Smart Chargers for Advanced Users
CyberPika Smart Charger offers programmable charging for 36V, 48V, and 52V batteries :
- 42V output at 4.0A for 36V systems
- Multiple adapters included (XLR, Junlei 3015 3-pin, DC2.5)
- Input: 100-240V~, 50-60Hz
- Compact size: 6.1″ × 2.9″ × 1.2″
Fast Charging Option: VEVOR 36V LiFePO4 Charger
- Output: 43.8V, 18A (for LiFePO4 chemistry)
- Charges 100Ah battery in ~5 hours
- 4-stage intelligent charging curve
- 0V activation for deeply discharged batteries
- FCC certified with cooling fan
Note: This is for LiFePO4 batteries only – not standard 36V Li-ion.
Smart Charging Technology
Modern 36V chargers use a 4-stage charging algorithm to protect battery health :
| Stage | Name | Function |
|---|---|---|
| 1 | Pre-charge | Wakes low-voltage battery (0V activation) |
| 2 | CC (Constant Current) | Rapid charging at full amperage |
| 3 | CV (Constant Voltage) | Reduces current as battery nears full |
| 4 | Termination | Cuts off output when fully charged |
This intelligent process prevents overcharging, which can damage lithium cells and create fire hazards.
How to Extend Your Battery Life
Proper charging habits significantly extend 36V battery lifespan :
- Charge regularly – A regularly charged battery maintains capacity longer
- Store at partial charge – Keep at 40-60% for long-term storage (over 30 days)
- Avoid extreme temperatures – Never charge below 0°C (32°F) or above 45°C (113°F)
- Don’t leave unattended – While modern chargers have safety features, it’s good practice
- Use the correct charger – Never mix different voltage chargers
Pros of a Quality 36V Charger
- Safe 42V output specifically for 36V lithium batteries
- 2A standard charging protects battery cycle life
- Multiple connector options (GX12, GX16, DC barrel, 4-pin)
- LED status indicator (red charging, green full)
- Overcurrent and short circuit protection
- CE, RoHS certified on quality models
- 2-year warranty from reputable brands
- Smart charging (CC-CV algorithm) prevents overcharging
- Compact and portable for travel
Cons
- 2A charging takes 4-7 hours for full charge
- Cheap “universal” chargers may lack proper safety features
- Counterfeit chargers without UL/CE certification pose fire risks
- Connector types vary widely – compatibility not guaranteed
ELECTRIC BIKE CHARGER 36V: Technical Specifications
Electrical Specifications
Physical Specifications
Common Connector Types
| Connector | Pin Count | Typical Use |
|---|---|---|
| DC Barrel (5.5×2.5mm) | 2 | Generic, Qoltec |
| GX12 | 3 | Qoltec |
| GX16 | 3 | Qoltec |
| 4-Pin OEM | 4 | Decathlon Elops |
| XLR | 3/4 | Addmotor, generic |
Safety Certifications
| Certification | Meaning |
|---|---|
| CE | Conforms with European health and safety standards |
| RoHS | Restriction of Hazardous Substances |
| UL | Underwriters Laboratories (US safety standard) |
| FCC | US electromagnetic compliance |
Who Needs a 36V Charger?
The ELECTRIC BIKE CHARGER 36V is perfect for:
- E-bike owners with a lost or damaged original charger
- Riders needing a spare charger for work or travel
- Lectric, Aventon, Decathlon Elops owners with 36V battery systems
- DIY builders completing a 36V e-bike conversion project
- Bike shops stocking replacement parts for customers
Why Choose the Right 36V Charger?
In conclusion, selecting the correct 36V electric bike charger requires matching voltage (42V output), amperage (2A standard), and connector type to your specific battery. A quality charger includes overcharge protection, short circuit prevention, and proper certification (CE/UL) .
Never use cheap, uncertified “universal” chargers – as demonstrated by the CPSC warning on SafPow and AMPOWSURE products, incompatible chargers can cause battery fires resulting in serious injury .
For most riders, a standard 2A charger with the correct connector provides the safest and most reliable charging experience. If you own a Lectric, Aventon, Rad Power, or Decathlon e-bike, verified 36V charger options are available specifically for your model .
When your 36V e-bike needs a replacement charger, choose a certified product with matching specifications for safe, efficient charging.
